SPW24N60CFDFKSA1-6364258

HIGH POWER_LEGACY

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: SPW24N60CFDFKSA1-6364258

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SPW24N60CFDFKSA1-6364258 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	21.7A (Tc)
Rds On (Max) @ Id, Vgs	185mOhm @ 15.4A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Bulk
Power Dissipation (Max)	240W (Tc)
Drain to Source Voltage (Vdss)	650 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs	143 nC @ 10 V

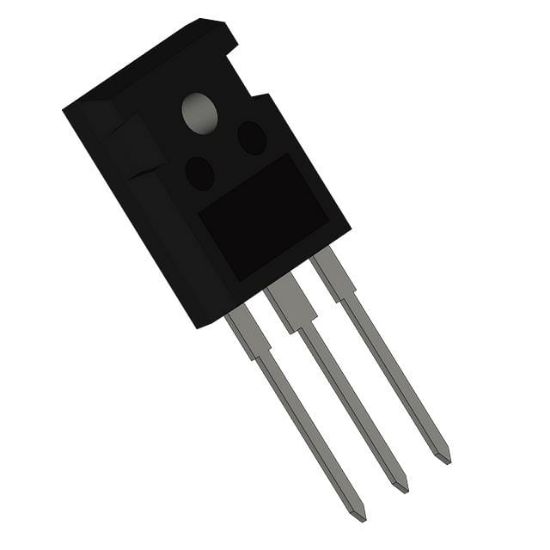

Supplier Device Package	PG-TO247-3-1
Input Capacitance (Ciss) (Max) @ Vds	3160 pF @ 25 V
RoHS	RoHS
