SGS13N60UFDTU-6367435

IGBT, 13A, 600V, N-CHANNEL

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: SGS13N60UFDTU-6367435

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SGS13N60UFDTU-6367435 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	13 A

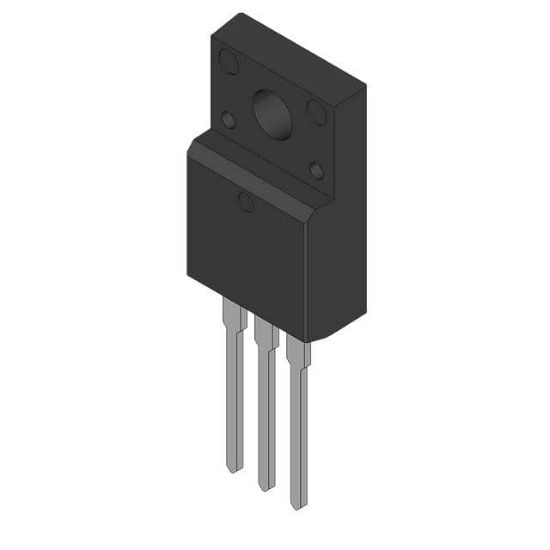

Supplier Device Package	TO-220F-3
Gate Charge	25 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	45 W
IGBT Type	-
Package	Tube
Current - Collector Pulsed (Icm)	52 A
Td (on/off) @ 25°C	20ns/70ns
Vce(on) (Max) @ Vge, Ic	2.6V @ 15V, 6.5A
Test Condition	300V, 6.5A, 50Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	55 ns
Switching Energy	85μJ (on), 95μJ (off)
RoHS	RoHS
