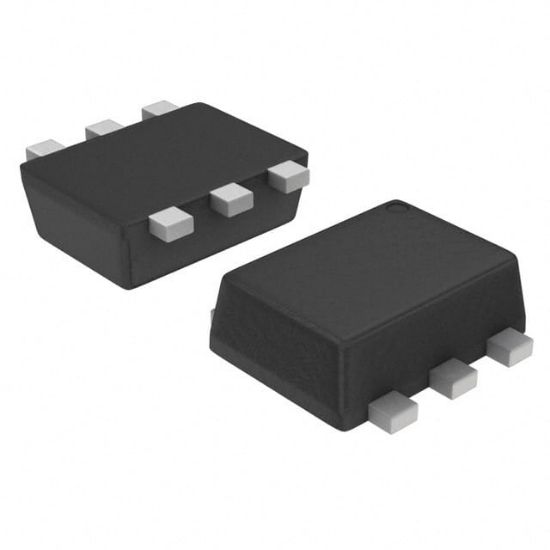

SBC847CDXV6T1G

TRANS 2NPN 45V 0.1A SOT-563

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: SBC847CDXV6T1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SBC847CDXV6T1G Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	600mV @ 5mA, 100mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	100mA
Supplier Device Package	SOT-563
Current - Collector Cutoff (Max)	15nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	45V
Power - Max	500mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	420 @ 2mA, 5V
Frequency - Transition	100MHz
RoHS	RoHS
Transistor Type	2 NPN (Dual)
