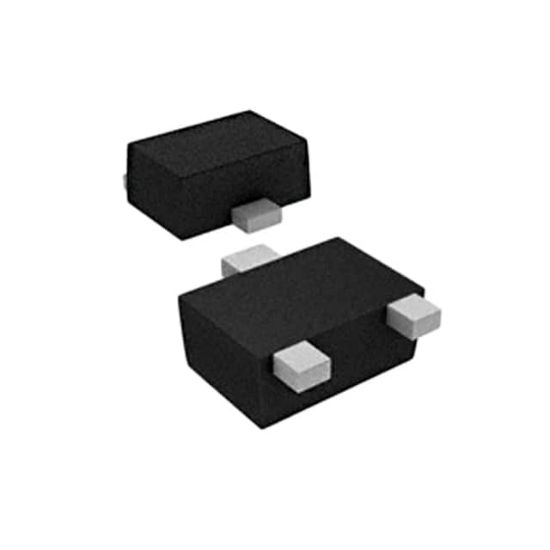

RN1107MFV,L3XHF(CT

AUTO AEC-Q NPN Q1BSR=10K, Q1BER=

1 review(s) | Add your review

Availability: In stock

Manufacturer: Toshiba Semiconductor and Storage

SKU: RN1107MFV,L3XHF(CT

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

RN1107MFV,L3XHF(CT Description

Vce Saturation (Max) @ Ib, Ic	300mV @ 500μA, 5mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	100 mA
Supplier Device Package	VESM
Current - Collector Cutoff (Max)	500nA
Voltage - Collector Emitter Breakdown (Max)	50 V
Power - Max	150 mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Resistor - Emitter Base (R2)	47 kOhms
Resistor - Base (R1)	10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 10mA, 5V
Frequency - Transition	-
RoHS	RoHS
Transistor Type	NPN - Pre-Biased
