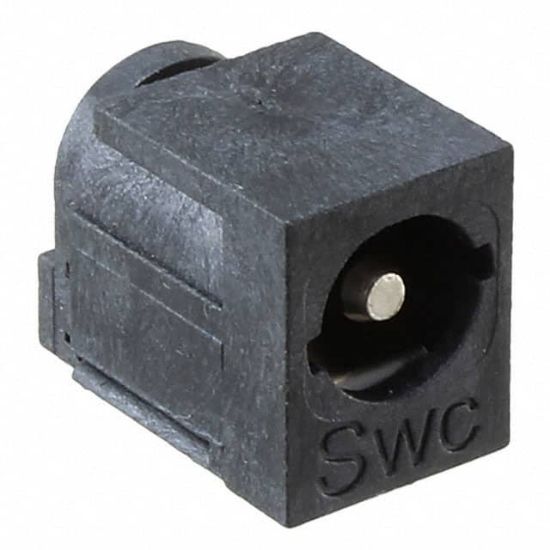

RAPC712BK

CONN PWR JACK 2.5X5.5MM SOLDER

1 review(s) | Add your review

Availability: In stock

Manufacturer: Switchcraft Inc.

SKU: RAPC712BK

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

RAPC712BK Description

Industry Recognized Mating Diameter	2.50mm ID (0.098\"), 5.50mm OD (0.217\")
Ingress Protection	-
Connector Type	Jack
Mounting Type	Through Hole, Right Angle
Internal Switch(s)	Single Switch, Normally Closed
Gender	Male
Current Rating (Amps)	5 A
Material Flammability Rating	-
Package	Bulk
Shielding	Unshielded
Termination	Solder Eyelet(s)
Mating Length/Depth	-
Number of Positions/Contacts	2 Conductors, 2 Contacts
Insulation Color	-
Actual Diameter	0.098\" (2.50mm)
Features	-
Mounting Feature	-
RoHS	RoHS
Voltage - Rated	-
