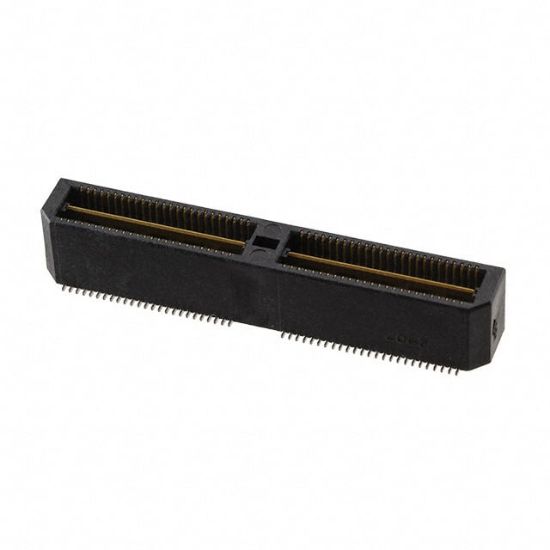

QTS-050-01-F-D-A

CONN HDR 100POS SMD GOLD

1 review(s) | Add your review

Availability: In stock

Manufacturer: Samtec Inc.

SKU: QTS-050-01-F-D-A

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

QTS-050-01-F-D-A Description

Number of Positions	100
Pitch	0.025\" (0.64mm)
Height Above Board	0.160\" (4.06mm)
Features	Board Guide, Ground Bus (Plane)
RoHS	RoHS
Connector Type	Header, Outer Shroud Contacts
Contact Finish Thickness	3.00μin (0.076μm)
Contact Finish	Gold
Package	Tray
Mated Stacking Heights	5mm
Mounting Type	Surface Mount
Number of Rows	2
