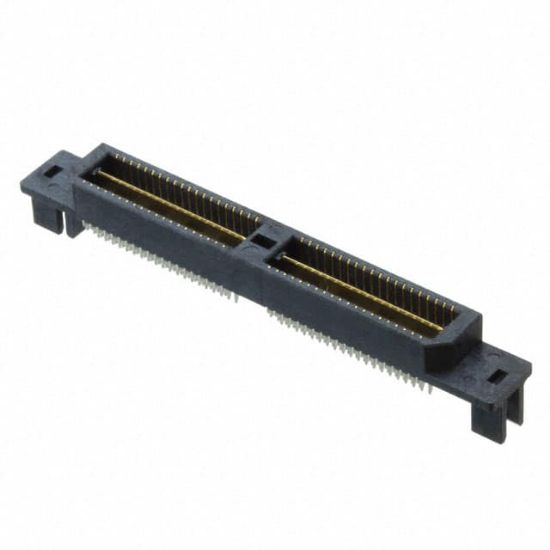

QTE-040-01-L-D-EM2

CONN HDR 80POS EDGE MNT GOLD

1 review(s) | Add your review

Availability: In stock

Manufacturer: Samtec Inc.

SKU: QTE-040-01-L-D-EM2

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

QTE-040-01-L-D-EM2 Description

Number of Positions	80
Pitch	0.031\" (0.80mm)
Height Above Board	-
Features	Ground Bus (Plane)
RoHS	RoHS
Connector Type	Header, Outer Shroud Contacts
Contact Finish Thickness	10.0μin (0.25μm)
Contact Finish	Gold
Package	Tray
Mated Stacking Heights	-
Mounting Type	Board Edge, Straddle Mount
Number of Rows	2
