PMDXB1200UPEZ-6314382

MOSFET 2P-CH 30V 0.41A 6DFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: PMDXB1200UPEZ-6314382

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PMDXB1200UPEZ-6314382 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Standard
Mounting Type	Surface Mount

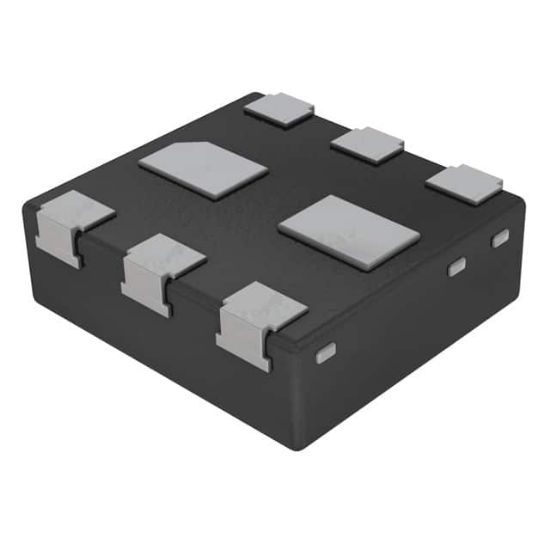

Supplier Device Package	DFN1010B-6
Current - Continuous Drain (Id) @ 25°C	410mA
Rds On (Max) @ Id, Vgs	1.4Ohm @ 410mA, 4.5V
FET Type	2 P-Channel (Dual)
Power - Max	285mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	30V
Vgs(th) (Max) @ Id	950mV @ 250μA
Gate Charge (Qg) (Max) @ Vgs	1.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	43.2pF @ 15V
RoHS	RoHS
