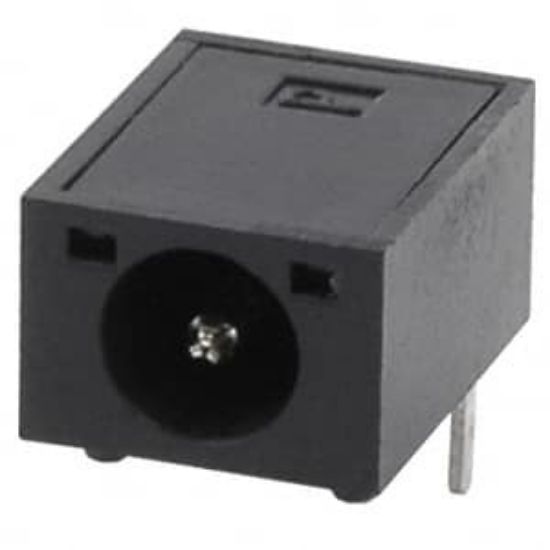

PJ-052D

CONN PWR JACK 1.3X3.4MM SOLDER

1 review(s) | Add your review

Availability: In stock

Manufacturer: CUI Devices

SKU: PJ-052D

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PJ-052D Description

Industry Recognized Mating Diameter	1.30mm ID (0.051\"), 3.50mm OD (0.138\")
Ingress Protection	-
Connector Type	Jack
Mounting Type	Through Hole, Right Angle
Internal Switch(s)	Single Switch, Normally Closed
Gender	Male
Current Rating (Amps)	2 A
Material Flammability Rating	UL94 V-0
Package	Bag
Shielding	Unshielded
Termination	Solder
Mating Length/Depth	0.260\" (6.60mm)
Number of Positions/Contacts	3 Conductors, 4 Contacts
Insulation Color	-
Actual Diameter	0.051\" (1.30mm ID), 0.150\" (3.80mm OD)
Features	Board Guide
Mounting Feature	-
RoHS	RoHS
Voltage - Rated	24VDC
