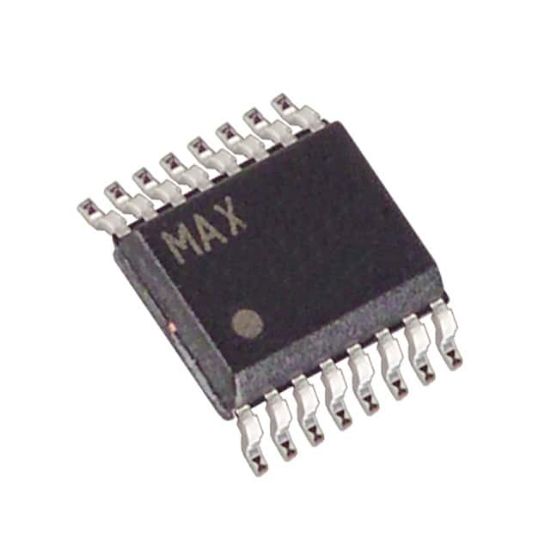

MAX14131FAEE+T

DGTL ISO 1000VRMS 4CH GP 16QSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Analog Devices Inc./Maxim Integrated

SKU: MAX14131FAEE+T

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MAX14131FAEE+T Description

Voltage - Supply	1.71V ~ 5.5V
Rise / Fall Time (Typ)	2ns, 2ns
Common Mode Transient Immunity (Min)	25kV/μs (Typ)
Propagation Delay tpLH / tpHL (Max)	7.5ns, 7.4ns
Data Rate	150Mbps
Technology	Capacitive Coupling
Isolated Power	No
Number of Channels	4
Pulse Width Distortion (Max)	1ns
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Channel Type	Unidirectional
Mounting Type	Surface Mount
Inputs - Side 1/Side 2	3/1
Type	General Purpose
Supplier Device Package	16-QSOP
Operating Temperature	-40°C ~ 125°C
Voltage - Isolation	1000Vrms
RoHS	RoHS
