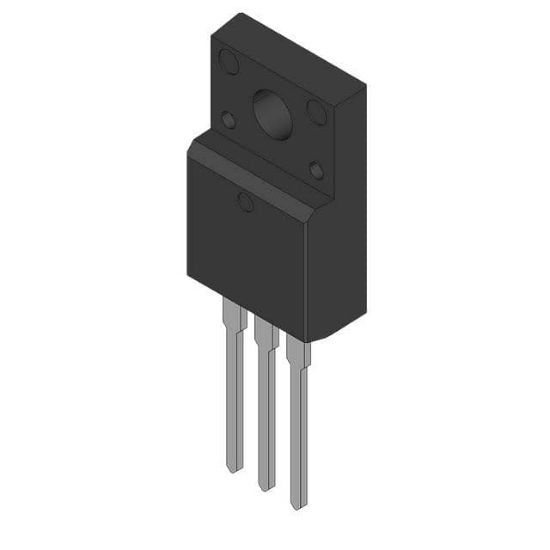

IRG4BC30SPBF-6367448

IGBT, 34A I(C), 600V V(BR)CES, N

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: IRG4BC30SPBF-6367448

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IRG4BC30SPBF-6367448 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	34 A
Supplier Device Package	TO-220AB
Gate Charge	75 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	100 W
IGBT Type	-
Package	Bulk
Current - Collector Pulsed (Icm)	68 A
Td (on/off) @ 25°C	22ns/540ns
Vce(on) (Max) @ Vge, Ic	1.6V @ 15V, 18A
Test Condition	480V, 18A, 23Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	-
Switching Energy	260μJ (on), 3.45mJ (off)
RoHS	RoHS
