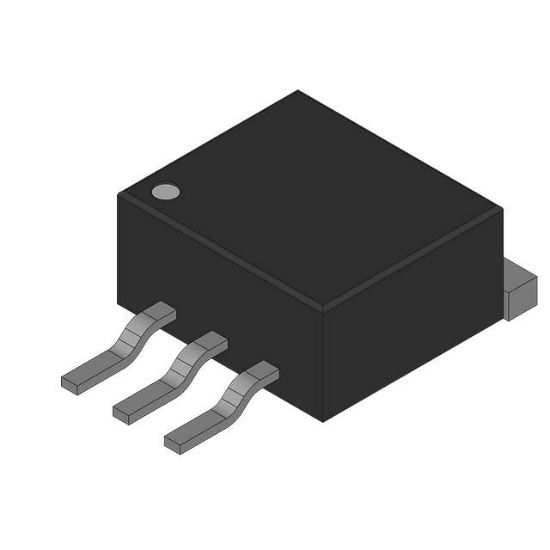

HGT1S7N60A4DS-6367436

N-CHANNEL IGBT

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: HGT1S7N60A4DS-6367436

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HGT1S7N60A4DS-6367436 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	34 A
Supplier Device Package	D2PAK (TO-263)
Gate Charge	37 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	125 W
IGBT Type	-
Package	Tube
Current - Collector Pulsed (Icm)	56 A
Td (on/off) @ 25°C	11ns/100ns
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 7A
Test Condition	390V, 7A, 25Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	34 ns
Switching Energy	55μJ (on), 60μJ (off)
RoHS	RoHS
