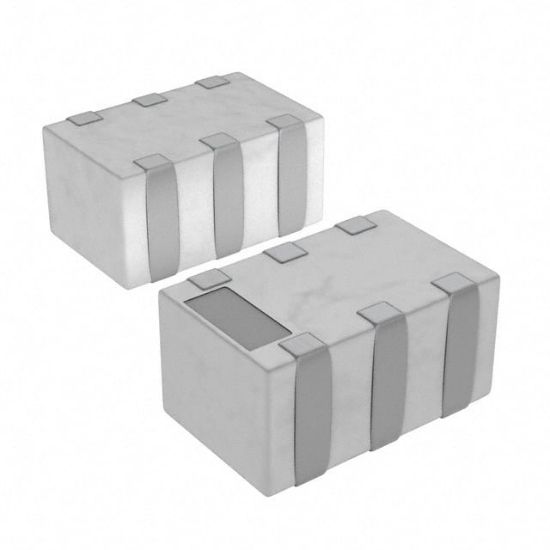

DPX202700DT-4035B5

RF DIPLEXER 1159MHZ/2.31GHZ 0805

1 review(s) | Add your review

Availability: In stock

Manufacturer: TDK Corporation

SKU: DPX202700DT-4035B5

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DPX202700DT-4035B5 Description

Return Loss (Low Band / High Band)	10.0dB / 18.0dB
High Band Attenuation (min / max dB)	10.00dB / 30.00dB
Type	Diplexer
RoHS	RoHS
Frequency Bands (Low / High)	698MHz ~ 1.62GHz / 1.92GHz ~ 2.7GHz
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Mounting Type	Surface Mount
Low Band Attenuation (min / max dB)	10.00dB / 22.00dB
