DMP3030SN-7

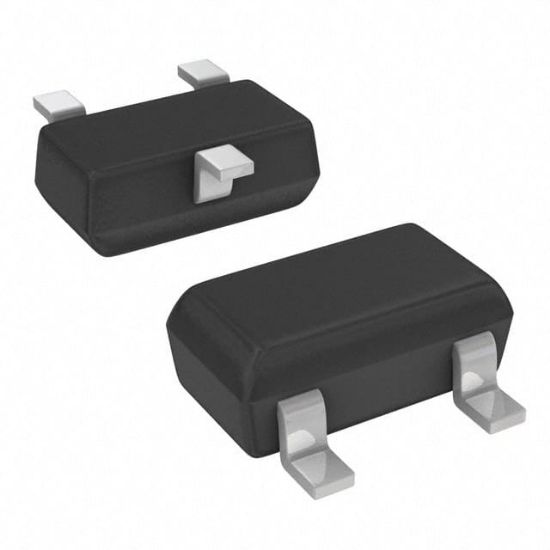

MOSFET P-CH 30V 700MA SC59-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: DMP3030SN-7

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DMP3030SN-7 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
PS2	DMP3030SN-7	DIODES	SOT-23	0	场效应管FET MOSFET-P沟道MOSFET P-Channel

Operating Temperature	-65°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	700mA (Ta)
Rds On (Max) @ Id, Vgs	250mOhm @ 400mA, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	500mW (Ta)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-
Supplier Device Package	SC-59-3
Input Capacitance (Ciss) (Max) @ Vds	160 pF @ 10 V
RoHS	RoHS
