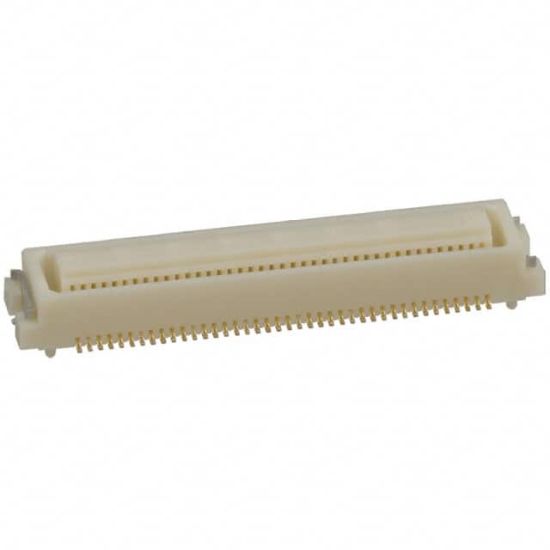

DF17(3.0)-80DS-0.5V(57)

CONN RCPT 80POS SMD GOLD

1 review(s) | Add your review

Availability: In stock

Manufacturer: Hirose Electric Co Ltd

SKU: DF17(3.0)-80DS-0.5V(57)

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DF17(3.0)-80DS-0.5V(57) Description

Number of Positions	80
Pitch	0.020\" (0.50mm)
Height Above Board	0.138\" (3.50mm)
Features	Board Guide, Solder Retention
RoHS	RoHS
Connector Type	Receptacle, Center Strip Contacts
Contact Finish Thickness	-
Contact Finish	Gold
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Mated Stacking Heights	5mm, 5.5mm, 7mm
Mounting Type	Surface Mount
Number of Rows	2
