BZT52-C5V6_R1_00001

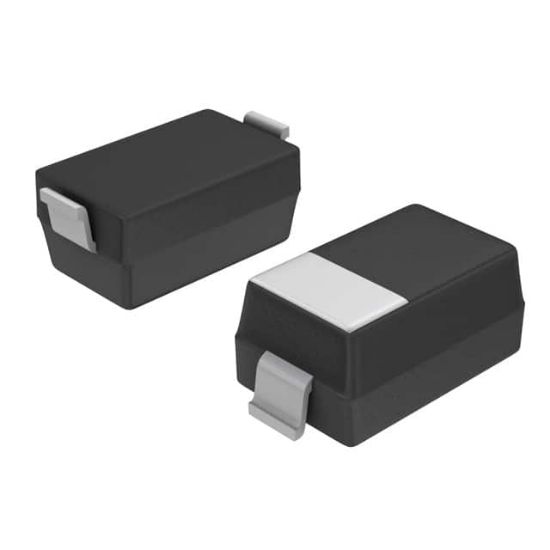

SOD-123, ZENER

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panjit International Inc.

SKU: BZT52-C5V6_R1_00001

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BZT52-C5V6_R1_00001 Description

Impedance (Max) (Zzt)	40 Ohms
Power - Max	410 mW
Voltage - Forward (Vf) (Max) @ If	-
Operating Temperature	-55°C ~ 150°C (TJ)
RoHS	RoHS
Current - Reverse Leakage @ Vr	100 nA @ 1 V
Mounting Type	Surface Mount
Supplier Device Package	SOD-123
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Zener (Nom) (Vz)	5.6 V
Tolerance	±1.96%
