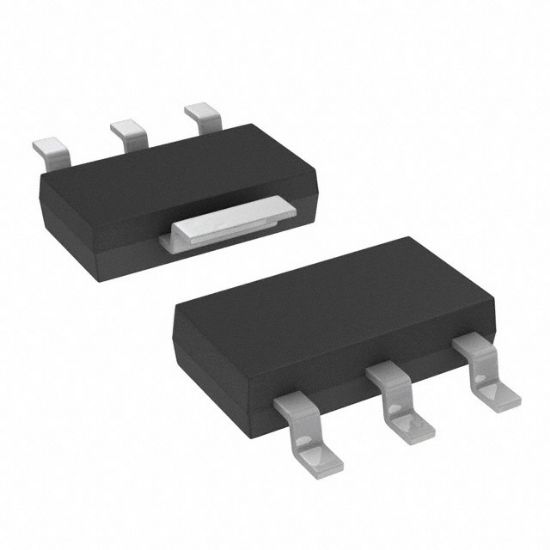

BSP125 E6327

MOSFET N-CH 600V 120MA SOT223-4

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: BSP125 E6327

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSP125 E6327 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	120mA (Ta)
Rds On (Max) @ Id, Vgs	45Ohm @ 120mA, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR)
Power Dissipation (Max)	1.8W (Ta)
Drain to Source Voltage (Vdss)	600 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.3V @ 94μA
Gate Charge (Qg) (Max) @ Vgs	6.6 nC @ 10 V
Supplier Device Package	PG-SOT223-4
Input Capacitance (Ciss) (Max) @ Vds	150 pF @ 25 V
RoHS	RoHS
