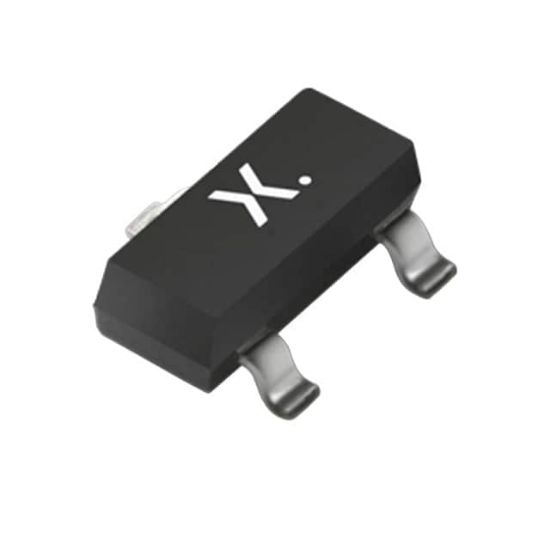

BSH103-215

MOSFET N-CH 30V 850MA TO236AB

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: BSH103-215

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSH103-215 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	850mA (Ta)
Rds On (Max) @ Id, Vgs	400mOhm @ 500mA, 4.5V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	2.5V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	540mW (Ta)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±8V
Vgs(th) (Max) @ Id	400mV @ 1mA (Min)
Gate Charge (Qg) (Max) @ Vgs	2.1 nC @ 4.5 V
Supplier Device Package	TO-236AB
Input Capacitance (Ciss) (Max) @ Vds	83 pF @ 24 V
RoHS	RoHS
