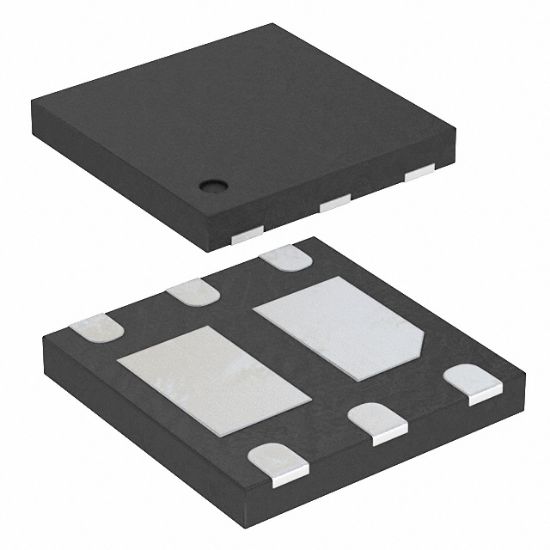

AON2803

MOSFET 2P-CH 20V 3.8A 6DFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AON2803

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AON2803 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
2803	AON2803	Aosmd	DFN 2x2-6	6	20V双P沟道MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount
Supplier Device Package	6-DFN (2x2)
Current - Continuous Drain (Id) @ 25°C	3.8A
Rds On (Max) @ Id, Vgs	70mOhm @ 3.8A, 4.5V
FET Type	2 P-Channel (Dual)
Power - Max	1.5W
Package	Tape & Reel (TR)
Drain to Source Voltage (Vdss)	20V
Vgs(th) (Max) @ Id	1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	12nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	560pF @ 10V
RoHS	RoHS
