ADUM160N1BRZ

DGTL ISO 3000VRMS 6CH GP 16SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Analog Devices Inc.

SKU: ADUM160N1BRZ

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ADUM160N1BRZ Description

Voltage - Supply	1.7V ~ 5.5V
Rise / Fall Time (Typ)	2.5ns, 2.5ns
Common Mode Transient Immunity (Min)	75kV/μs
Propagation Delay tpLH / tpHL (Max)	13ns, 13ns
Data Rate	150Mbps
Technology	Magnetic Coupling
Isolated Power	No
Number of Channels	6
Pulse Width Distortion (Max)	4.5ns
Package	Tube
Channel Type	Unidirectional
Mounting Type	Surface Mount
Inputs - Side 1/Side 2	6/0
Type	General Purpose

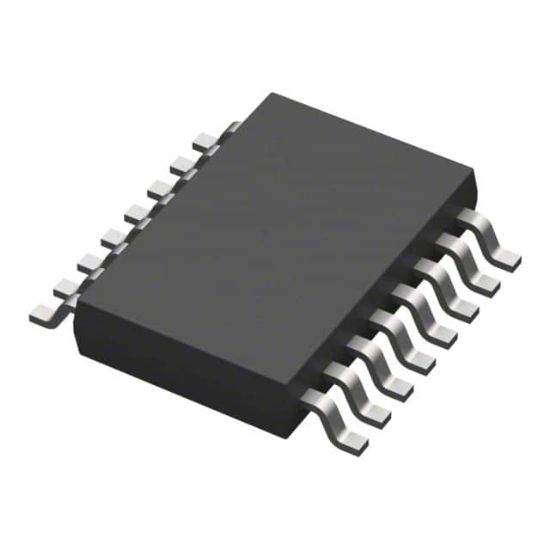

Supplier Device Package	16-SOIC
Operating Temperature	-40°C ~ 125°C
Voltage - Isolation	3000Vrms
RoHS	RoHS
