ADUM1201WSRZ33-RL7

DGTL ISO 2500VRMS 2CH GP 8SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Analog Devices Inc.

SKU: ADUM1201WSRZ33-RL7

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ADUM1201WSRZ33-RL7 Description

Voltage - Supply	3V ~ 5.5V
Rise / Fall Time (Typ)	2.5ns, 2.5ns
Common Mode Transient Immunity (Min)	25kV/μs
Propagation Delay tpLH / tpHL (Max)	150ns, 150ns
Data Rate	1Mbps
Technology	Magnetic Coupling
Isolated Power	No
Number of Channels	2
Pulse Width Distortion (Max)	40ns
Package	Tape & Reel (TR)
Channel Type	Unidirectional
Mounting Type	Surface Mount
Inputs - Side 1/Side 2	1/1
Type	General Purpose

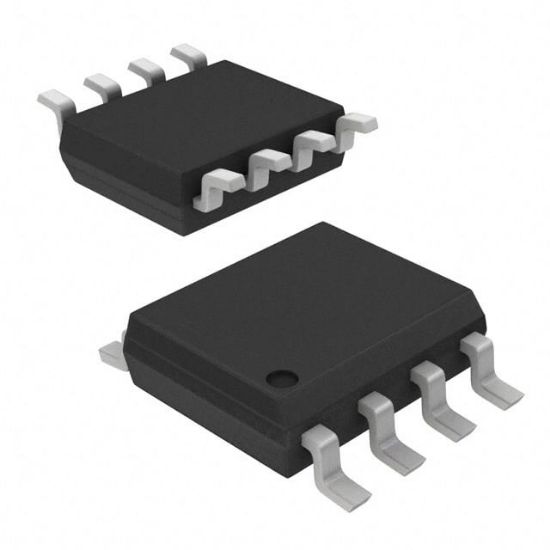

Supplier Device Package	8-SOIC
Operating Temperature	-40°C ~ 125°C
Voltage - Isolation	2500Vrms
RoHS	RoHS
