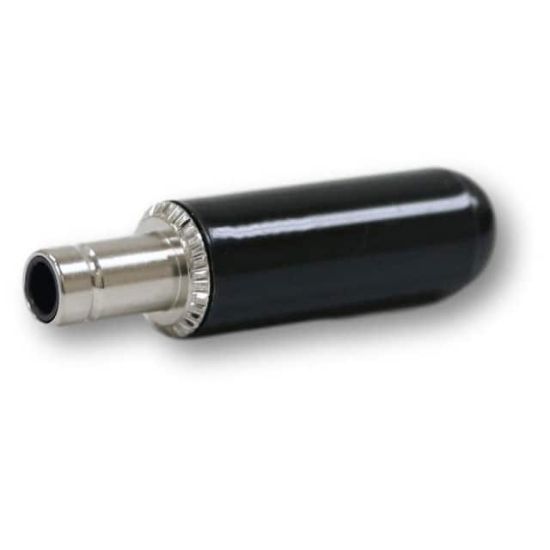

760HZ

DC POWER PLUG, Z SERIES, 2.5MM X

1 review(s) | Add your review

Availability: In stock

Manufacturer: Switchcraft Inc.

SKU: 760HZ

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

760HZ Description

Industry Recognized Mating Diameter	2.50mm ID (0.098\"), 5.50mm OD (0.217\")
Ingress Protection	-
Connector Type	Plug
Mounting Type	Free Hanging (In-Line)
Internal Switch(s)	Does Not Contain Switch
Gender	Female
Current Rating (Amps)	7.5 A
Material Flammability Rating	-
Package	Bulk
Shielding	Unshielded
Termination	Solder Eyelet(s)
Mating Length/Depth	0.374\" (9.50mm)
Number of Positions/Contacts	2 Conductors, 2 Contacts
Insulation Color	Black
Actual Diameter	0.098\" (2.50mm ID), 0.217\" (5.50mm OD)
Features	Cable Clamp
Mounting Feature	-
RoHS	RoHS
Voltage - Rated	24VDC
