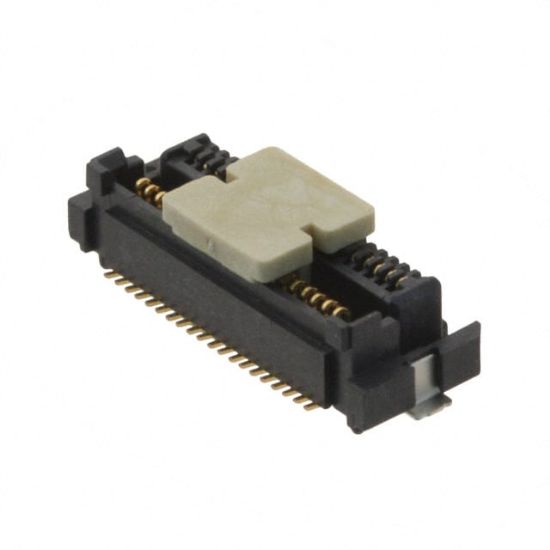

10106813-021112LF

CONN SELF-MATE 20POS SMD GOLD

1 review(s) | Add your review

Availability: In stock

Manufacturer: Amphenol CS (FCI)

SKU: 10106813-021112LF

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

10106813-021112LF Description

Number of Positions	20
Pitch	0.020\" (0.50mm)
Height Above Board	0.140\" (3.55mm)
Features	Board Guide, Solder Retention
RoHS	RoHS
Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish Thickness	15.0μin (0.38μm)
Contact Finish	Gold or Gold, GXT?
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Mated Stacking Heights	4mm, 4.5mm, 5.5mm
Mounting Type	Surface Mount
Number of Rows	2
