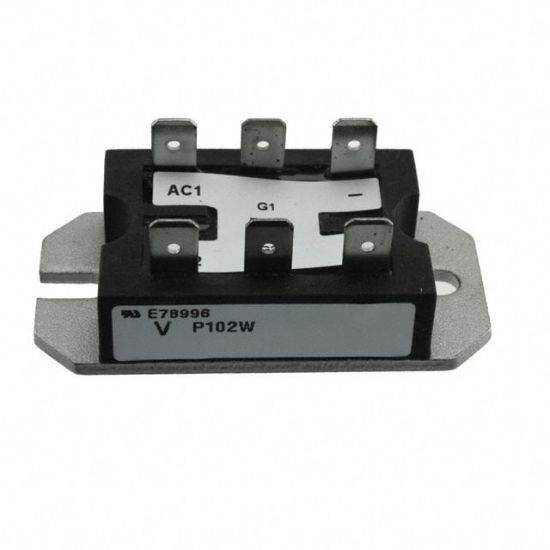

VS-P102W

SCR HY-BRIDGE 600V 25A PACE-PAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay General Semiconductor - Diodes Division

SKU: VS-P102W

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

VS-P102W Description

Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Voltage - Gate Trigger (Vgt) (Max)	2 V
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Voltage - Off State	600 V
Current - On State (It (AV)) (Max)	-
Current - Gate Trigger (Igt) (Max)	60 mA
Package	Bulk
Current - Non Rep. Surge 50, 60Hz (Itsm)	357A, 375A
Current - On State (It (RMS)) (Max)	-
Number of SCRs, Diodes	2 SCRs, 2 Diodes
Current - Hold (Ih) (Max)	130 mA
RoHS	RoHS
