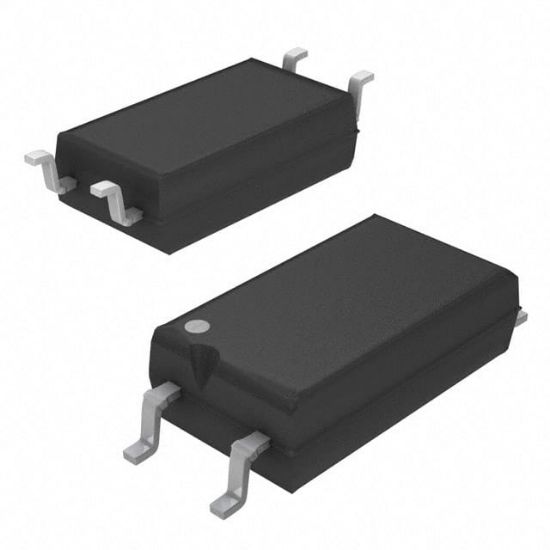

VOL628A

OPTOISOLATOR 5KV TRANS LSOP-4

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay Semiconductor Opto Division

SKU: VOL628A

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

VOL628A Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
628A-	VOL628A		SOP-4L	4	Optocoupler, Phototransistor Output, AC Input, Low Input Current

Operating Temperature	-55°C ~ 110°C
Rise / Fall Time (Typ)	3.5μs, 5μs
Mounting Type	Surface Mount
Supplier Device Package	4-SOP
Current Transfer Ratio (Max)	600% @ 1mA
Vce Saturation (Max)	400mV
Number of Channels	1
Voltage - Output (Max)	80V
Turn On / Turn Off Time (Typ)	6μs, 5.5μs
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current Transfer Ratio (Min)	50% @ 1mA
Voltage - Forward (Vf) (Typ)	1.16V
Current - Output / Channel	50mA
Input Type	AC, DC
Current - DC Forward (If) (Max)	60 mA
Voltage - Isolation	5000Vrms
RoHS	RoHS
Output Type	Transistor
