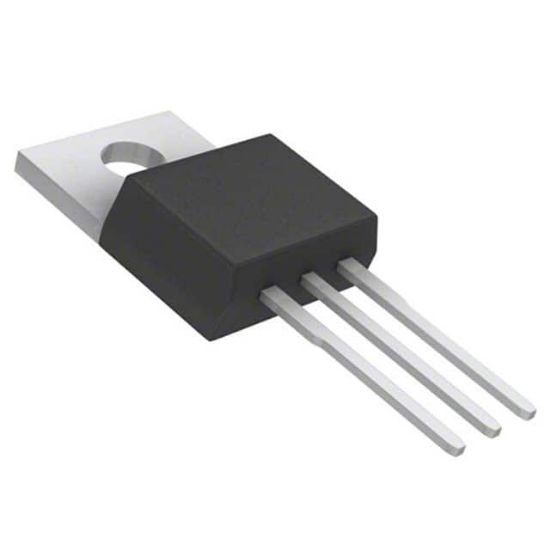

UA7815CKCS

IC REG LINEAR 15V 1.5A TO220-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: UA7815CKCS

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

UA7815CKCS Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
UA7815C	UA7815CKCS	TI	3	0	3 Pin 1.5A Fixed 15V Positive Voltage Regulator

Operating Temperature	0°C ~ 125°C
Voltage Dropout (Max)	2V @ 1A
Voltage - Output (Min/Fixed)	15V
Mounting Type	Through Hole
Current - Output	1.5A
PSRR	78dB (120Hz)
Current - Supply (Max)	-
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Output Configuration	Positive
Package	Tube
Control Features	-
Voltage - Input (Max)	30V
Supplier Device Package	TO-220-3
Number of Regulators	1
Current - Quiescent (Iq)	-
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
