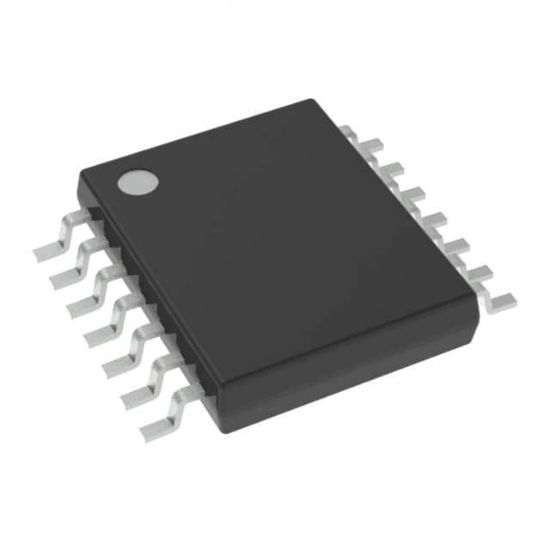

TS12A44514PWR

IC SWITCH QUAD SPST 14TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TS12A44514PWR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TS12A44514PWR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
YD4514	TS12A44514PWR		TSSOP-14	14	Low On-State Resistance Quad SPST CMOS Analog Switches

Operating Temperature	-40°C ~ 85°C (TA)
Channel Capacitance (CS(off), CD(off))	8pF, 8pF
On-State Resistance (Max)	10Ohm
Mounting Type	Surface Mount
Supplier Device Package	14-TSSOP
Switch Circuit	SPST - NO
Voltage - Supply, Dual (V±)	-
Number of Circuits	4
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Charge Injection	-10.5pC
Switch Time (Ton, Toff) (Max)	75ns, 45ns
Voltage - Supply, Single (V+)	2.7V ~ 12V
Crosstalk	-
Multiplexer/Demultiplexer Circuit	1:1
Channel-to-Channel Matching (ΔRon)	2.5Ohm (Max)
-3db Bandwidth	530MHz
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	1nA
