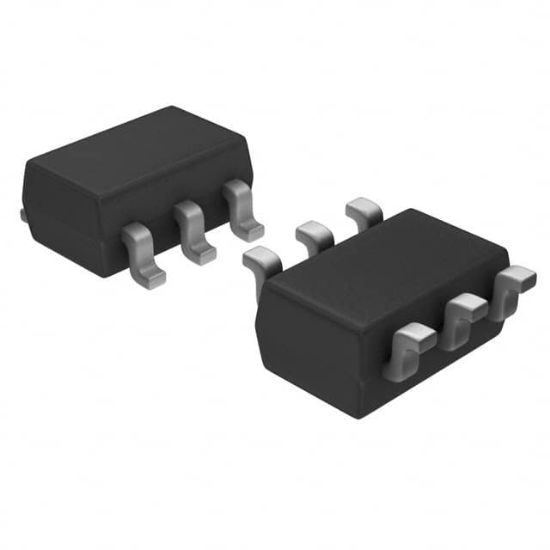

TLV3501AQDBVRQ1

IC COMPARATOR 4.5NS R-R SOT23-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TLV3501AQDBVRQ1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TLV3501AQDBVRQ1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
VCBQ	TLV3501AQDBVRQ1		SOT-23-6	6	4.5-ns Rail-to-Rail, High-Speed Comparator

Operating Temperature	-40°C ~ 125°C
Voltage - Input Offset (Max)	6.5mV @ 5.5V
Number of Elements	1
Current - Output (Typ)	-
Mounting Type	Surface Mount
Hysteresis	6mV
Supplier Device Package	SOT-23-6
Voltage - Supply, Single/Dual (±)	2.7V ~ 5.5V, ±1.35V ~ 2.75V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Current - Quiescent (Max)	5mA
CMRR, PSRR (Typ)	70dB CMRR, 100dB PSRR
Type	General Purpose
Propagation Delay (Max)	10ns
Current - Input Bias (Max)	10pA @ 5.5V
RoHS	RoHS
Output Type	CMOS, Push-Pull, Rail-to-Rail, TTL
