SY100EL01ZI

IC GATE OR/NOR 4-INPUT 8-SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Microchip Technology

SKU: SY100EL01ZI

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SY100EL01ZI Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
XEL01	SY100EL01ZI		Z8-1	0	4-Input OR/NOR

Output Type	Differential
Operating Temperature	-40°C ~ 85°C
Current - Output High, Low	-
Number of Circuits	1
RoHS	RoHS
Logic Type	NOR/OR Gate
Voltage - Supply	4.2V ~ 5.5V

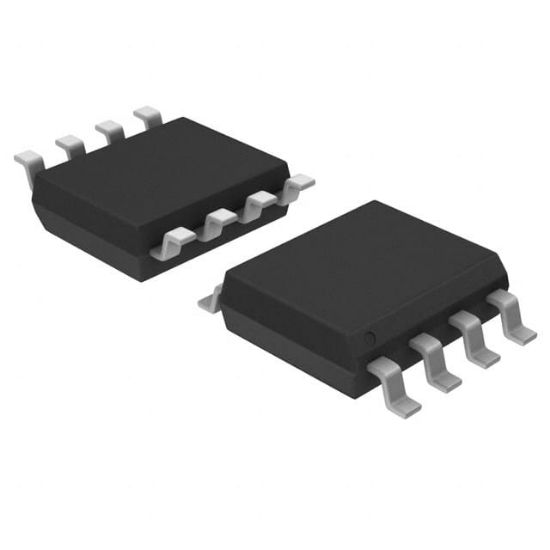

Supplier Device Package	8-SOIC
Package	Tube
Number of Inputs	4
Schmitt Trigger Input	No
Mounting Type	Surface Mount
