STX690A

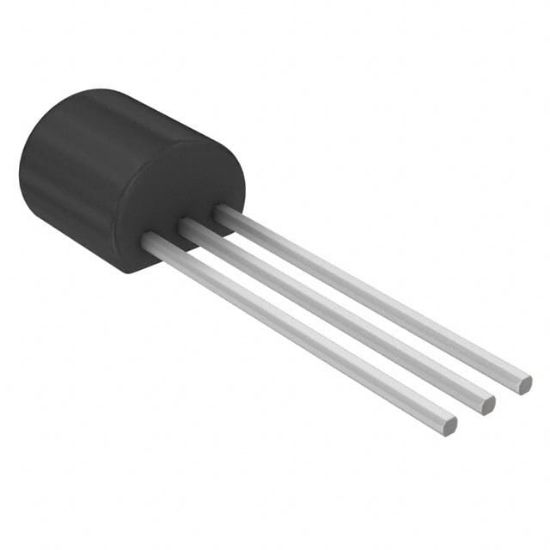

TRANS NPN 30V 3A TO-92

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STX690A

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STX690A Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
X690A	STX690A		TO-92	3	High performance low voltage NPN transistor

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	400mV @ 100mA, 3A
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	3 A
Supplier Device Package	TO-92-3
Current - Collector Cutoff (Max)	10μA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	30 V
Power - Max	900 mW
Package	Bulk
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 500mA, 2V
Frequency - Transition	100MHz
RoHS	RoHS
Transistor Type	NPN
