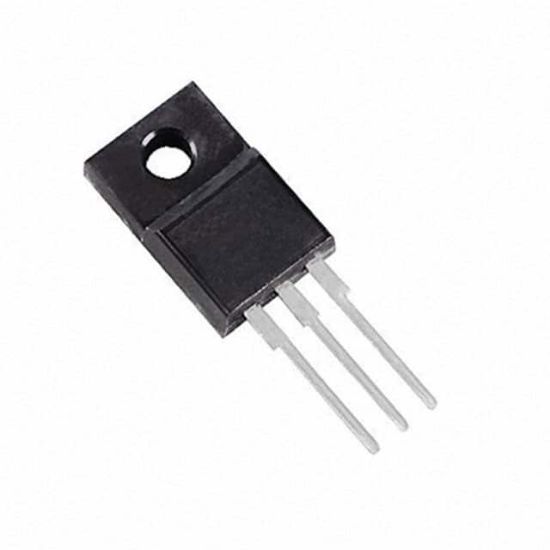

STF5NK52ZD

MOSFET N-CH 520V 4.4A TO220FP

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STF5NK52ZD

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STF5NK52ZD Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
F5NK52ZD	STF5NK52ZD		TO-220FP	3	N-channel 520 V,1.22 ,4.4 A Zener-protected SuperMESH Power MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	4.4A (Tc)
Rds On (Max) @ Id, Vgs	1.5Ohm @ 2.2A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	25W (Tc)
Drain to Source Voltage (Vdss)	520 V
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	4.5V @ 50μA
Gate Charge (Qg) (Max) @ Vgs	16.9 nC @ 10 V
Supplier Device Package	TO-220FP
Input Capacitance (Ciss) (Max) @ Vds	529 pF @ 25 V
RoHS	RoHS
