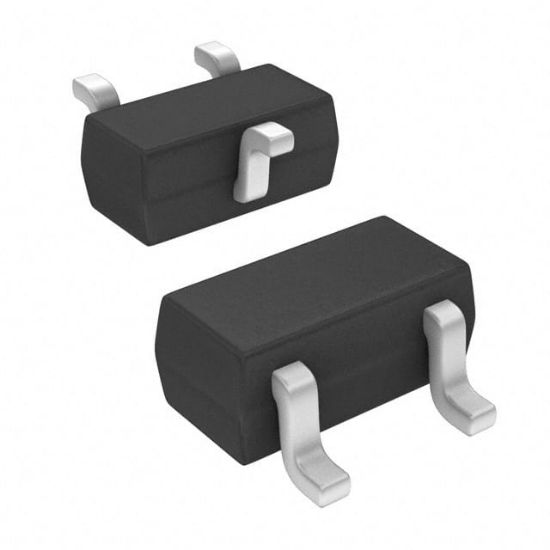

SSM3K56FS,LF

MOSFET N-CH 20V 800MA SSM

1 review(s) | Add your review

Availability: In stock

Manufacturer: Toshiba Semiconductor and Storage

SKU: SSM3K56FS,LF

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SSM3K56FS,LF Description

Operating Temperature	150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	800mA (Ta)
Rds On (Max) @ Id, Vgs	235mOhm @ 800mA, 4.5V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	150mW (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±8V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	1 nC @ 4.5 V
Supplier Device Package	SSM
Input Capacitance (Ciss) (Max) @ Vds	55 pF @ 10 V
RoHS	RoHS
