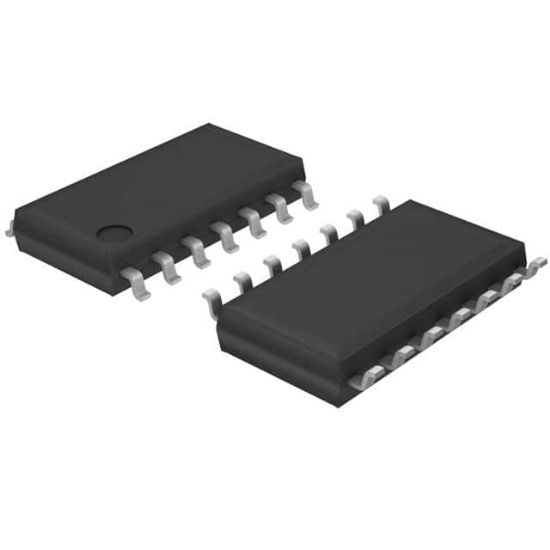

SN74LVT125NSR

IC BUFFER NON-INVERT 3.6V 14SOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LVT125NSR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVT125NSR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
LVT125	SN74LVT125NSR		SOP-14	14	3.3-V ABT Quadruple Bus Buffers With 3-State Outputs

Output Type	3-State
Operating Temperature	-40°C ~ 85°C (TA)
Current - Output High, Low	32mA, 64mA
RoHS	RoHS
Logic Type	Buffer, Non-Inverting
Voltage - Supply	2.7V ~ 3.6V
Number of Elements	4
Supplier Device Package	14-SO
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Input Type	-
Number of Bits per Element	1
Mounting Type	Surface Mount
