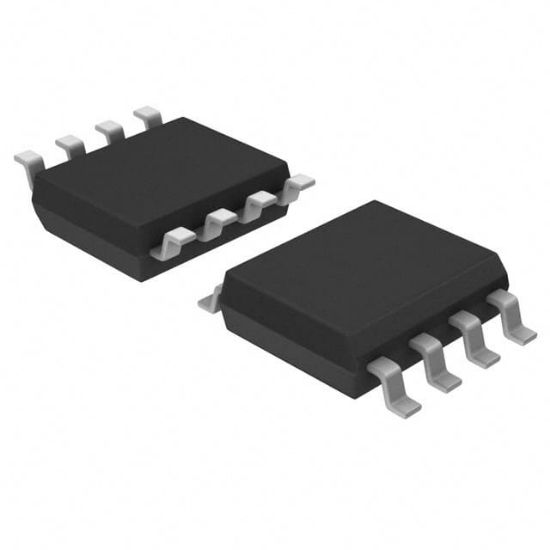

SN74LVC1G99DCTRG4

IC CONFIG MULTI-FUNC GATE SM8

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LVC1G99DCTRG4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVC1G99DCTRG4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
C99 Z	SN74LVC1G99DCTRG4	TI	8	0	Ultra-Configurable Multi-Function Gate With 3-State Outputs

Output Type	Tri-State
Operating Temperature	-40°C ~ 125°C
Current - Output High, Low	32mA, 32mA
Number of Circuits	1
RoHS	RoHS
Logic Type	Configurable Multiple Function
Voltage - Supply	1.65V ~ 5.5V
Supplier Device Package	SM8
Package	Tape & Reel (TR)
Number of Inputs	4
Schmitt Trigger Input	No
Mounting Type	Surface Mount
