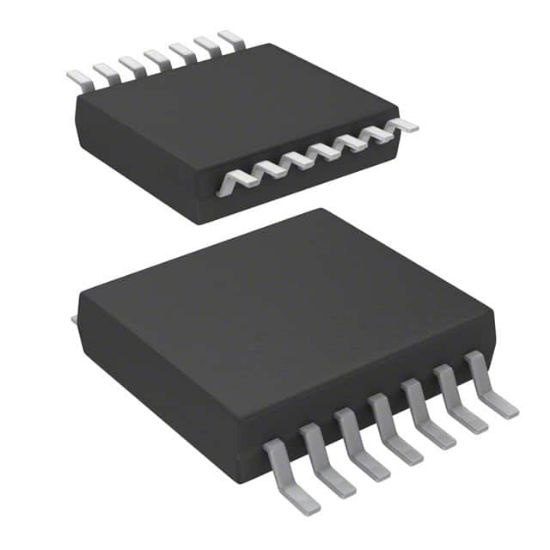

SN74AHC74DGVR

IC FF D-TYPE DUAL 1BIT 14TVSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74AHC74DGVR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74AHC74DGVR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
HA74	SN74AHC74DGVR		TVSOP-14	14	3-5 pF varicap in

Voltage - Supply	2V ~ 5.5V
Number of Elements	2
Mounting Type	Surface Mount
Supplier Device Package	14-TVSOP
Number of Bits per Element	1
Function	Set(Preset) and Reset
Clock Frequency	115 MHz
Operating Temperature	-40°C ~ 125°C (TA)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Max Propagation Delay @ V, Max CL	9.3ns @ 5V, 50pF
Type	D-Type
Current - Output High, Low	8mA, 8mA
Trigger Type	Positive Edge
Current - Quiescent (Iq)	2 μA
RoHS	RoHS
Input Capacitance	2 pF
Output Type	Complementary
