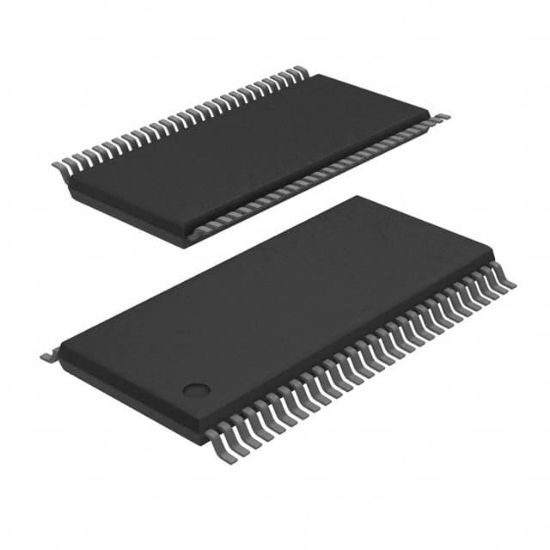

SN74ACT7806-40DL

IC STROBED FIFO 256X18 56-SSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74ACT7806-40DL

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74ACT7806-40DL Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ACT7806-40	SN74ACT7806-40DL		SSOP-56	56	256 x 18 asynchronous FIFO memory

Voltage - Supply	4.5 V ~ 5.5 V
Memory Size	4.5K (256 x 18)
Programmable Flags Support	Yes
Data Rate	25MHz
Supplier Device Package	56-SSOP
Expansion Type	Width
Function	Asynchronous
Operating Temperature	0°C ~ 70°C
Package	Tube
Mounting Type	Surface Mount
Bus Directional	Uni-Directional
Current - Supply (Max)	400μA
FWFT Support	No
Retransmit Capability	No
RoHS	RoHS
Access Time	20ns
