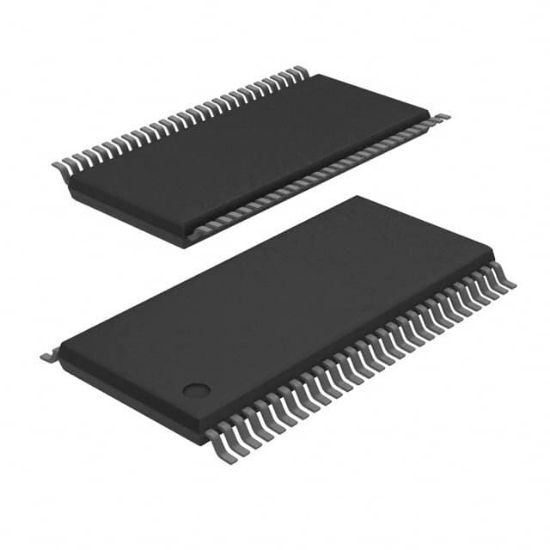

SN74ABT162841DLR

IC 20BIT BUS-INTRFC D 56-SSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74ABT162841DLR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74ABT162841DLR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ABT162841	SN74ABT162841DLR	TI	56	0	20-Bit Bus-Interface D-Type Latches With 3-State Outputs

Output Type	Tri-State
Circuit	10:10
Independent Circuits	2
Operating Temperature	-40°C ~ 85°C
RoHS	RoHS
Logic Type	D-Type Transparent Latch
Voltage - Supply	4.5V ~ 5.5V
Current - Output High, Low	12mA, 12mA
Supplier Device Package	56-SSOP
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Delay Time - Propagation	3.5ns
Mounting Type	Surface Mount
