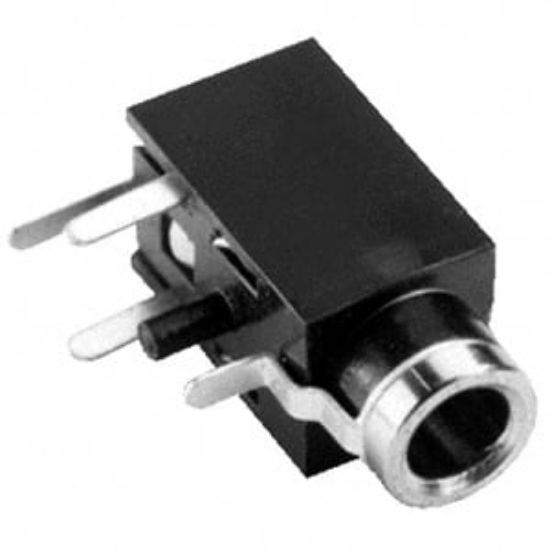

SJ1-2503A

CONN JACK STEREO 2.5MM R/A

1 review(s) | Add your review

Availability: In stock

Manufacturer: CUI Devices

SKU: SJ1-2503A

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SJ1-2503A Description

Actual Diameter	0.102\" (2.60mm)
Connector Type	Phone Jack
Mounting Type	Through Hole, Right Angle
Internal Switch(s)	Does Not Contain Switch
Gender	Female
Operating Temperature	-
Package	Bag
Shielding	Unshielded
Termination	Solder
Industry Recognized Mating Diameter	2.50mm (0.094\", 3/32\", Sub Mini, Miniature) - Headphone
Insulation Color	-
Signal Lines	Stereo (3 Conductor, TRS)
Features	-
RoHS	RoHS
Number of Positions/Contacts	3 Conductors, 4 Contacts
