SGS5N60RUFDTU-6367393

IGBT, 8A, 600V, N-CHANNEL

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: SGS5N60RUFDTU-6367393

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SGS5N60RUFDTU-6367393 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	8 A

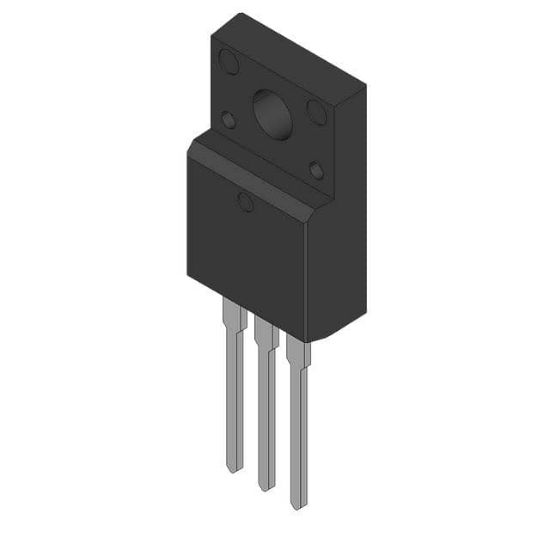

Supplier Device Package	TO-220F-3
Gate Charge	16 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	35 W
IGBT Type	-
Package	Tube
Current - Collector Pulsed (Icm)	15 A
Td (on/off) @ 25°C	13ns/34ns
Vce(on) (Max) @ Vge, Ic	2.8V @ 15V, 5A
Test Condition	300V, 5A, 40Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	55 ns
Switching Energy	88μJ (on), 107μJ (off)
RoHS	RoHS
