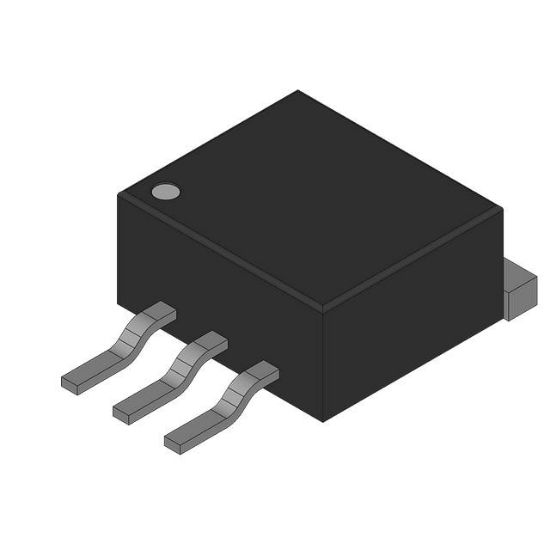

SGR6N60UFTF-6367379

N-CHANNEL IGBT

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: SGR6N60UFTF-6367379

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SGR6N60UFTF-6367379 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	6 A
Supplier Device Package	TO-252, (D-Pak)
Gate Charge	15 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	30 W
IGBT Type	-
Package	Bulk
Current - Collector Pulsed (Icm)	25 A
Td (on/off) @ 25°C	15ns/60ns
Vce(on) (Max) @ Vge, Ic	2.6V @ 15V, 3A
Test Condition	300V, 3A, 80Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	-
Switching Energy	57μJ (on), 25μJ (off)
RoHS	RoHS
