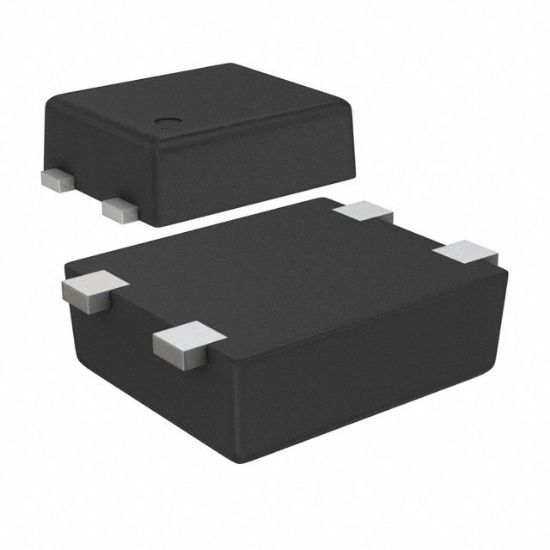

S-817A58APF-CVVTFG

IC REG LINEAR 5.8V 75MA SNT4A

1 review(s) | Add your review

Availability: In stock

Manufacturer: ABLIC Inc.

SKU: S-817A58APF-CVVTFG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

S-817A58APF-CVVTFG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
CVV	S-817A58APF-CVVTFG	Sii	SNT-4A	4	5.8V±2%, 75mA

Operating Temperature	-40°C ~ 85°C (TA)
Voltage Dropout (Max)	0.23V @ 10mA
Voltage - Output (Min/Fixed)	5.8V
Mounting Type	Surface Mount
Current - Output	75mA
PSRR	-
Current - Supply (Max)	-
Protection Features	Short Circuit
Output Configuration	Positive
Package	Tape & Reel (TR)
Control Features	-
Voltage - Input (Max)	10V
Supplier Device Package	SNT-4A
Number of Regulators	1
Current - Quiescent (Iq)	2.5 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
