RN1110ACT(TPL3)

TRANS PREBIAS NPN 50V 0.08A CST3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Toshiba Semiconductor and Storage

SKU: RN1110ACT(TPL3)

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

RN1110ACT(TPL3) Description

Vce Saturation (Max) @ Ib, Ic	150mV @ 250μA, 5mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	80 mA

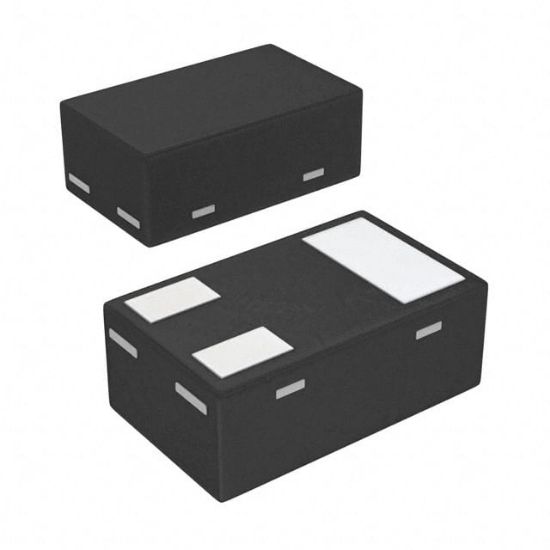

Supplier Device Package	CST3
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	50 V
Power - Max	100 mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Resistor - Emitter Base (R2)	-
Resistor - Base (R1)	47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 1mA, 5V
Frequency - Transition	-
RoHS	RoHS
Transistor Type	NPN - Pre-Biased
