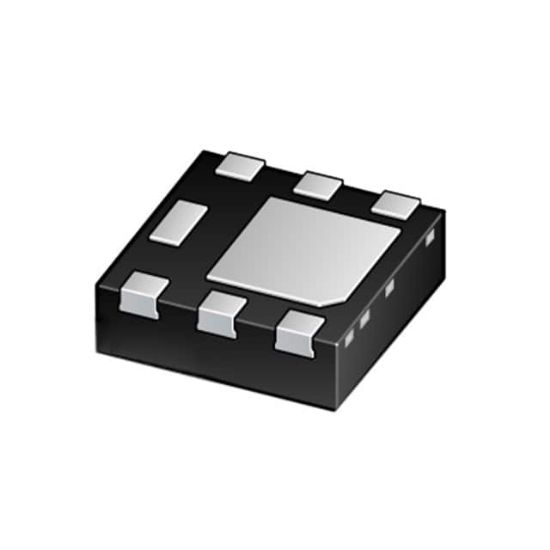

PMPB12EPX

MOSFET P-CH 30V 7.9A DFN2020MD-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: PMPB12EPX

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PMPB12EPX Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	7.9A (Ta)
Rds On (Max) @ Id, Vgs	17.3mOhm @ 7.9A, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	1.7W (Ta), 13W (Tc)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	39.9 nC @ 10 V
Supplier Device Package	DFN2020MD-6
Input Capacitance (Ciss) (Max) @ Vds	227 pF @ 15 V
RoHS	RoHS
