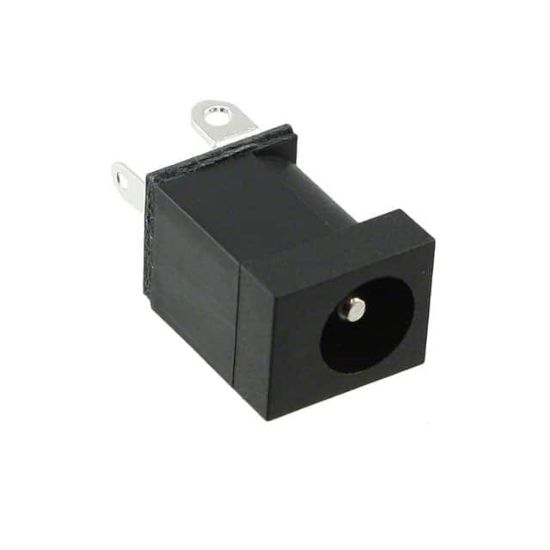

PJ-006B

CONN PWR JACK 2.5X5.5MM SOLDER

1 review(s) | Add your review

Availability: In stock

Manufacturer: CUI Devices

SKU: PJ-006B

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PJ-006B Description

Industry Recognized Mating Diameter	2.50mm ID (0.098\"), 5.50mm OD (0.217\")
Ingress Protection	-
Connector Type	Jack
Mounting Type	Through Hole
Internal Switch(s)	Single Switch, Normally Closed
Gender	Male
Current Rating (Amps)	2 A
Material Flammability Rating	UL94 V-0
Package	Bag
Shielding	Unshielded
Termination	Solder Eyelet(s)
Mating Length/Depth	-
Number of Positions/Contacts	2 Conductors, 3 Contacts
Insulation Color	-
Actual Diameter	0.098\" (2.50mm ID), 0.248\" (6.30mm OD)
Features	-
Mounting Feature	-
RoHS	RoHS
Voltage - Rated	16VDC
