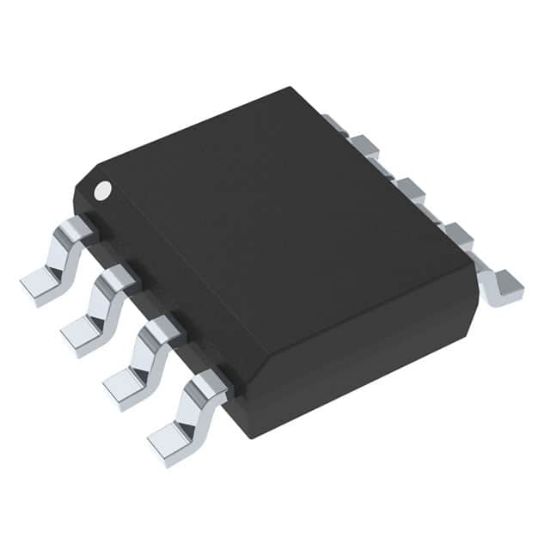

NTMD6N02R2G

MOSFET 2N-CH 20V 3.92A 8SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NTMD6N02R2G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTMD6N02R2G Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC
Current - Continuous Drain (Id) @ 25°C	3.92A
Rds On (Max) @ Id, Vgs	35mOhm @ 6A, 4.5V
FET Type	2 N-Channel (Dual)
Power - Max	730mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Drain to Source Voltage (Vdss)	20V
Vgs(th) (Max) @ Id	1.2V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	20nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1100pF @ 16V
RoHS	RoHS
