NTLUF4189NZTAG

MOSFET N-CH 30V 1.2A 6UDFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NTLUF4189NZTAG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTLUF4189NZTAG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
AAx	NTLUF4189NZTAG		UDFN6	6	Single N-Channel 30 V MOSFET plus Schottky Barrier Diode

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Schottky Diode (Isolated)
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	1.2A (Ta)
Rds On (Max) @ Id, Vgs	200mOhm @ 1.5A, 4.5V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Power Dissipation (Max)	500mW (Ta)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±8V
Vgs(th) (Max) @ Id	1.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	3 nC @ 4.5 V

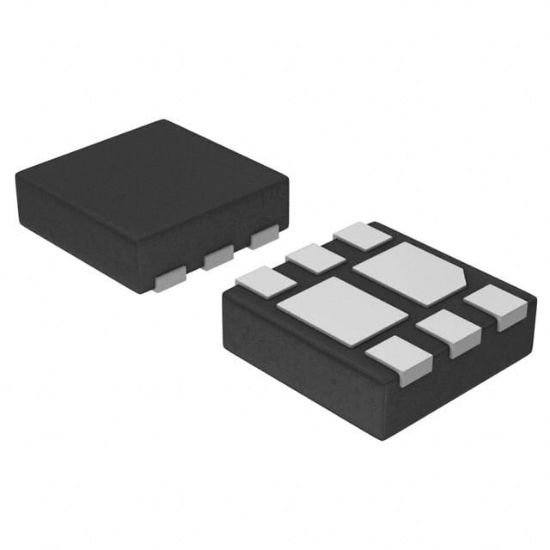

Supplier Device Package	6-UDFN (1.6x1.6)
Input Capacitance (Ciss) (Max) @ Vds	95 pF @ 15 V
RoHS	RoHS
