NSVMMUN2112LT1G

TRANS PREBIAS PNP 0.246W SOT23

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NSVMMUN2112LT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NSVMMUN2112LT1G Description

Vce Saturation (Max) @ Ib, Ic	250mV @ 300μA, 10mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	100 mA

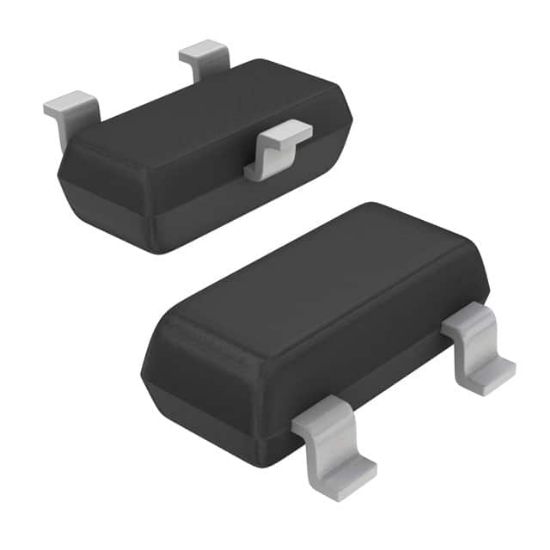

Supplier Device Package	SOT-23-3 (TO-236)
Current - Collector Cutoff (Max)	500nA
Voltage - Collector Emitter Breakdown (Max)	50 V
Power - Max	246 mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Resistor - Emitter Base (R2)	22 kOhms
Resistor - Base (R1)	22 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 5mA, 10V
Frequency - Transition	-
RoHS	RoHS
Transistor Type	PNP - Pre-Biased
