NSI45020JZT1G

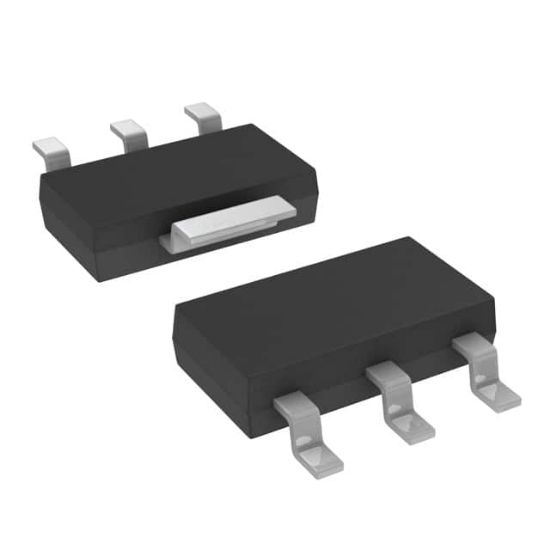

IC LED DRVR CONST CURRENT SOT223

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NSI45020JZT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NSI45020JZT1G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
AAJ	NSI45020JZT1G		SOT-223	4	45 V, 20 mA + 15%, 1.5 W, Adjustable Constant Current Regulator & LED Driver

Operating Temperature	-55°C ~ 150°C
RoHS	RoHS
Function	Current Regulator
Sensing Method	High/Low-Side
Supplier Device Package	SOT-223 (TO-261)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Accuracy	±15%
Current - Output	40mA
Mounting Type	Surface Mount
Voltage - Input	45V
