NLSX4378FCT1G

IC TRNSLTR BIDIRECTIONAL 12UBUMP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NLSX4378FCT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NLSX4378FCT1G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
S4378F	NLSX4378FCT1G		CSP1.5x2.2-12	0	4-Bit 24 Mbps Dual-Supply Level Translator

Operating Temperature	-40°C ~ 85°C (TA)
Voltage - VCCA	1.65 V ~ 5.5 V
Data Rate	24Mbps
Output Signal	-
Input Signal	-
Number of Circuits	1
Channels per Circuit	4
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Channel Type	Bidirectional
Voltage - VCCB	1.65 V ~ 5.5 V
Mounting Type	Surface Mount

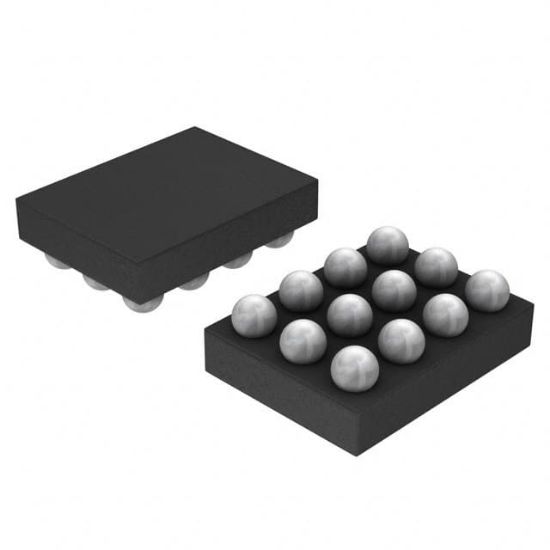

Supplier Device Package	12-FlipChip (2.02x1.54)
Translator Type	Voltage Level
Features	Auto-Direction Sensing
RoHS	RoHS
Output Type	Open Drain
