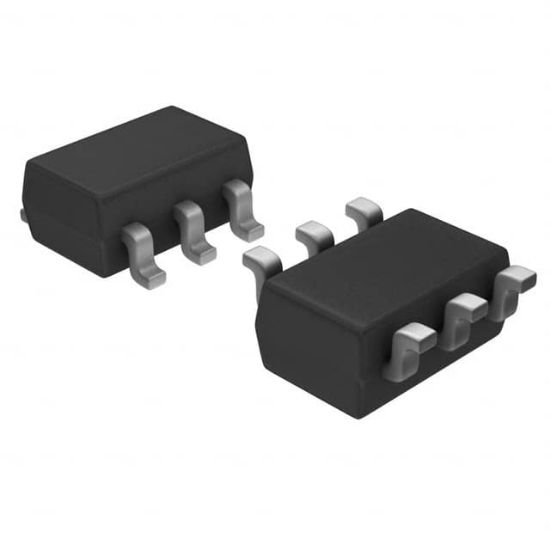

NDC7003P

MOSFET 2P-CH 60V 0.34A SSOT6

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NDC7003P

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NDC7003P Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
03P	NDC7003P	Fairchild	SSOT-6	6	双N和P沟道增强模式场效应晶体管
03Px	NDC7003P		SSOT-6	0	Dual P-Channel PowerTrench MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount
Supplier Device Package	SuperSOT?-6
Current - Continuous Drain (Id) @ 25°C	340mA
Rds On (Max) @ Id, Vgs	5Ohm @ 340mA, 10V
FET Type	2 P-Channel (Dual)
Power - Max	700mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	60V
Vgs(th) (Max) @ Id	3.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	2.2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	66pF @ 25V
RoHS	RoHS
